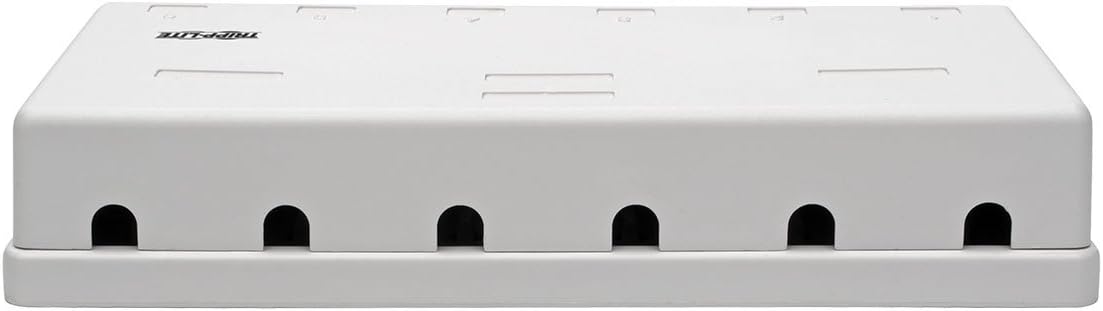

TRIPP LITE Cat6 Surface-Mount Box 6-Port Pre-Configured Unshielded 110 IDC Punchdown RJ45 White, 3-Year Warranty (N236-006-WH)

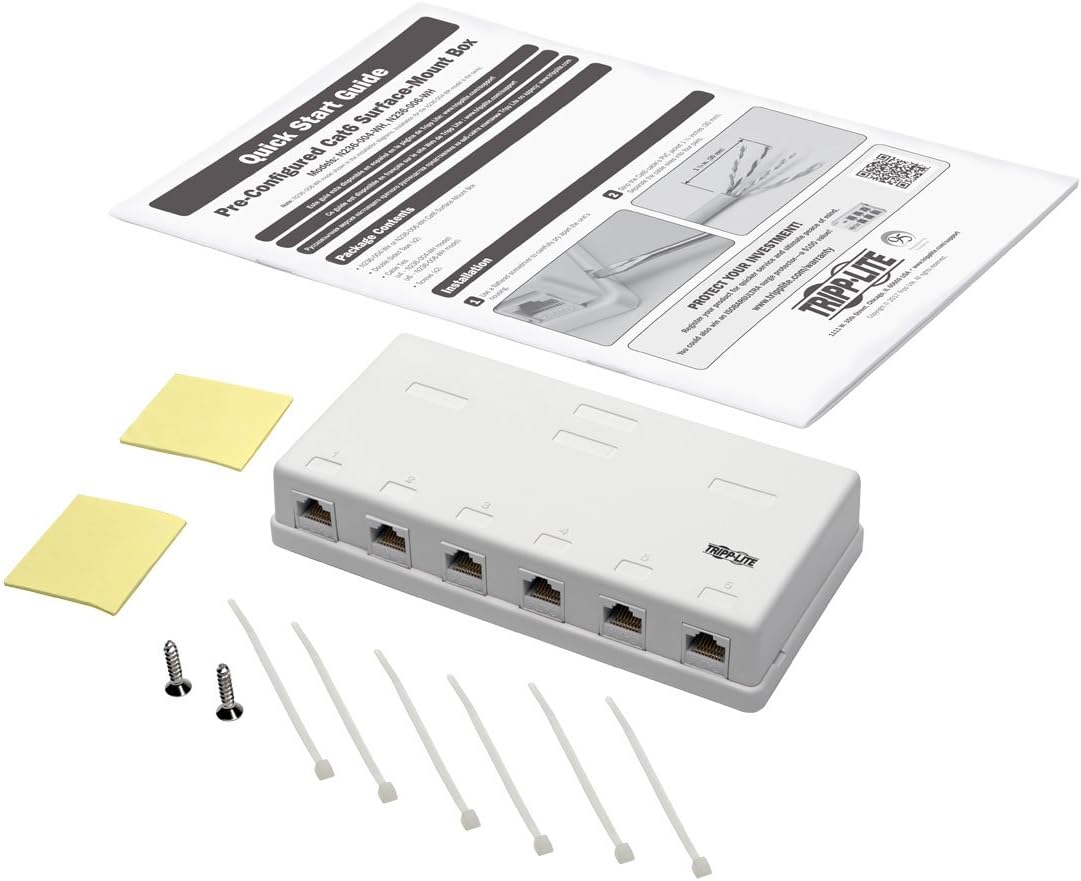

The N236-006-WH Pre-Configured Unshielded Cat6 6-Port Surface-Mount Box features six RJ45 female connectors as a safe, easy, cost-effective tool for expanding your Cat5e/6 audio/video, voice or Ethernet network. The ABS UL 94V-0 flame-retardant housing mounts practically anywhere, including a wall or baseboard, using the included mounting screws or double-sided adhesive tape. Just snap open the top cover to terminate up to six 22–26 AWG Cat5e/6 copper cables using a standard 110 IDC punch down tool (such as Tripp Lite's N046-000). The termination blocks are color-coded for easy T568A or T568B wiring. Zip ties are included for neatly securing the cables to the Cat6 surface-mount box, which features rear routing slots to allow the box to be installed flush against a wall or ceiling. Snap the cover back on, and connect up to six Cat5e/6 cables to the pre-installed RJ45 keystone jacks with 50-micron gold-plated contacts for maximum conductivity and minimum data loss. The N236-006-WH offers great flexibility in placement, especially in applications where in-wall box and wire installation is impossible.

• Connect up to 6 Cat5e/6 cables to pre-installed RJ45 keystone jacks
• 50 μm gold-plated contacts for maximum conductivity
• Durable ABS UL 94V-0 flame-retardant housing designed to last
• Recommended for use with 22–26 AWG Cat5e/6 cabling
