Portable Battery Spot Welder, 1.8" LCD Screen 1200A Dual Pulse Battery Welder with USB Output Rechargeable for 18650 Battery Packs

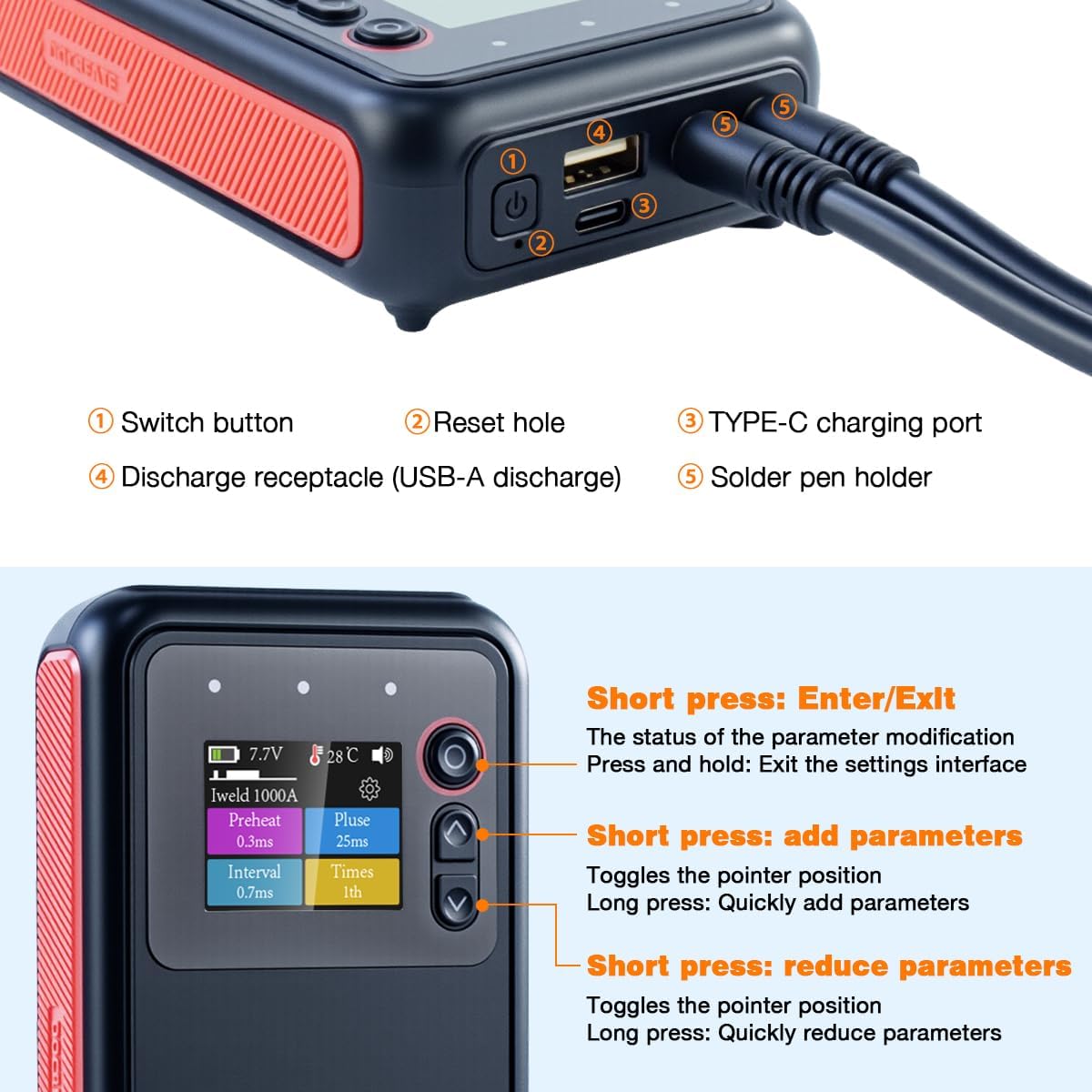

Parameters: Product name: Portable intelligent spot welding machine Product model: TK-10B Screen type: 1.8-inch TFT true color screen Shell material: ABS+acrylic+silicone Product size: 155x79x34.5mm Product weight: 270g Type-C input: 5V 1.5A (MAX) USB-A output: 5.2V 3.1A (MAX) Welding current: 1200A (MAX) Notes: 1. Please read this manual carefully before using this product and use it correctly to maximize the performance of this product; 2. Do not disassemble, modify or repair this product by yourself; 3. It is not recommended to use it while charging. Spot welding parameter description: Preheat pulse: Before the main pulse, it is usually set to 1-10MS (depending on the thickness of the material). Its function is to increase the local temperature of the welding connection (mainly metal sheets) so that it fits the welding parts closely and achieves a good welding effect; Main pulse: After the preheat pulse, a main pulse will be output to quickly release high energy, so that the connection parts are partially melted and combined with the welding parts; Interval time: The interval time between the preheat pulse and the main pulse reduces the continuous output time to prevent the output power from being too high and the welding needle from overheating; Number of consecutive points: The number of times the same welding output can be used to strengthen the welding point. The default value is 1. When welding thicker workpieces, the number of consecutive points can be appropriately increased, but it cannot break through the limit thickness of the weldable workpiece; Package include： Welder*1 welding pen*2 Nickel sheet*1 USB cable*1 Rasps*1 Manual*1

• 【Smart & Powerful Welding】The portable spot welder features a Cortex-M0 32-bit intelligent processor, ensuring precise and efficient output control. With dual-pulse spot welding technology, it delivers clean, strong, and reliable welds, making it ideal for 18650 battery packs, electronic spot welding, lithium battery welding, electronic repairs, and laboratory applications.
• 【HD 1.8" LCD Display】Designed for an enhanced user experience, this smart spot welder is equipped with a 1.8-inch HD LCD color screen, offering an intuitive and aesthetically pleasing interface and support brightness adjustment. The real-time welding current and temperature display provides clear and accurate monitoring, making operation easy and efficient.
• 【 1200A High Welding Power】With a maximum output current of 1200A, it delivers exceptional welding performance, ensuring stable and durable connections. Whether you’re working on nickel strips, battery packs, or small metal components, this device provides professional-grade results every time.
• 【USB Output & Fast Charging】Not just a welding tool! It also features a USB-A output (5.2V 3.1A MAX), allowing you to conveniently charge or power other devices. Powered via Type-C input (5V 1.5A MAX), it ensures fast and efficient charging for uninterrupted use.
• 【Compact, Durable & Portable】Crafted from high-quality ABS, acrylic, and silicone, this spot welder is built to last while maintaining a lightweight, ergonomic design. Weighing only 270g and measuring 155x79x34.5mm, it's easy to carry and store—perfect for professionals and DIY enthusiasts alike!
