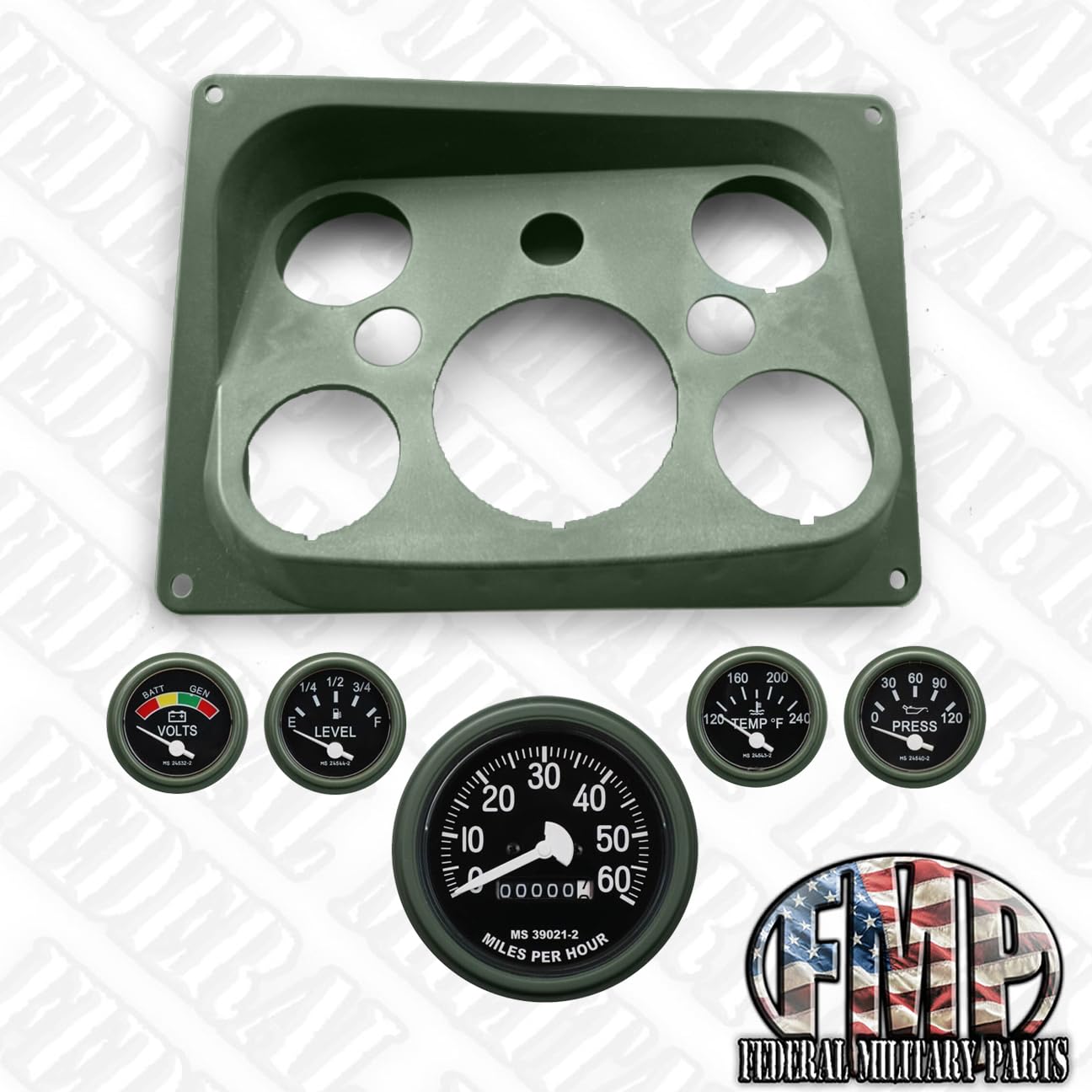

Instrument Panel + Set of 5 Dashboard Gauges, Speedometer, Fuel, Water, Pressure, Battery Voltage Gauge- Compatible with Humvee- Green, Black, or Tan (383 Green)
Product details
| Management number | 208102266 | Release Date | 2026/03/22 | List Price | $115.60 | Model Number | 208102266 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Military 5 piece set of dashboard gauges + Instrument Panel. Comes in three color choices: NATO Black, Desert tan or 383 Green. Panel dimensions: 11” x 8” x 2” Speedometer Replace PN: MS39021-2 NSN: 6680-00-933-3599 Sizes: 85mm (3-3/8") Measuring Range: 0 - 60 (MPH) * Military speedometers are mechanical, using a cable to transmit speed information from the vehicle's drivetrain to the speedometer in the dashboard. This is a more robust and reliable system compared to electronic speedometers, as it's less prone to damage and easier to repair in the field Fuel Level Gauge Replace PN: MS24544-2 NSN: 6680-00-933-3600 Sizes: 52mm (2-1/16") Measuring Range: Empty - 1/2 - Full Resistance: 0 (E) - 30 (F) ohms Oil Pressure Gauge Replace PN: MS24540-2 NSN: 6620-00-115-9042 Sizes: 52mm (2-1/16") Measuring Range: 0 - 120 (PSI) Volt Gauge Replace PN: MS24532-2 NSN: 6625-01-086-9580 Sizes: 52mm (2-1/16") Measuring Range: 16 - 32 (V) Water Temperature Gauge Replace PN: MS24543-2 NSN: 6685-00-936-2139 Sizes: 52mm (2-1/16") Measuring Range: 120 - 240 (°F)
- Speedometer: Replace PN: MS39021-2 NSN: 6680-00-933-3599 Sizes: 85mm (3-3/8") Measuring Range: 0 - 60 (MPH) * Military speedometers are mechanical, using a cable to transmit speed information from the vehicle's drivetrain to the speedometer in the dashboard. This is a more robust and reliable system compared to electronic speedometers, as it's less prone to damage and easier to repair in the field
- Fuel Level Gauge Replace PN: MS24544-2 NSN: 6680-00-933-3600 Sizes: 52mm (2-1/16") Measuring Range: Empty - 1/2 - Full Resistance: 0 (E) - 30 (F) ohms
- Oil Pressure Gauge: Replace PN: MS24540-2 NSN: 6620-00-115-9042 Sizes: 52mm (2-1/16") Measuring Range: 0 - 120 (PSI)
- Volt Gauge Replace PN: MS24532-2 NSN: 6625-01-086-9580 Sizes: 52mm (2-1/16") Measuring Range: 16 - 32 (V)
- Water Temperature Gauge Replace PN: MS24543-2 NSN: 6685-00-936-2139 Sizes: 52mm (2-1/16") Measuring Range: 120 - 240 (°F)
- Instrument Dashboard Panel Bezel: 11” x 8” x 2”
- FITS: HMMWV
- NEED NEW LIGHTS AND LENS COVERS/GASKETS? Check out ASIN: B09WJTHRRG
| Manufacturer | Federal Military Parts |
|---|
