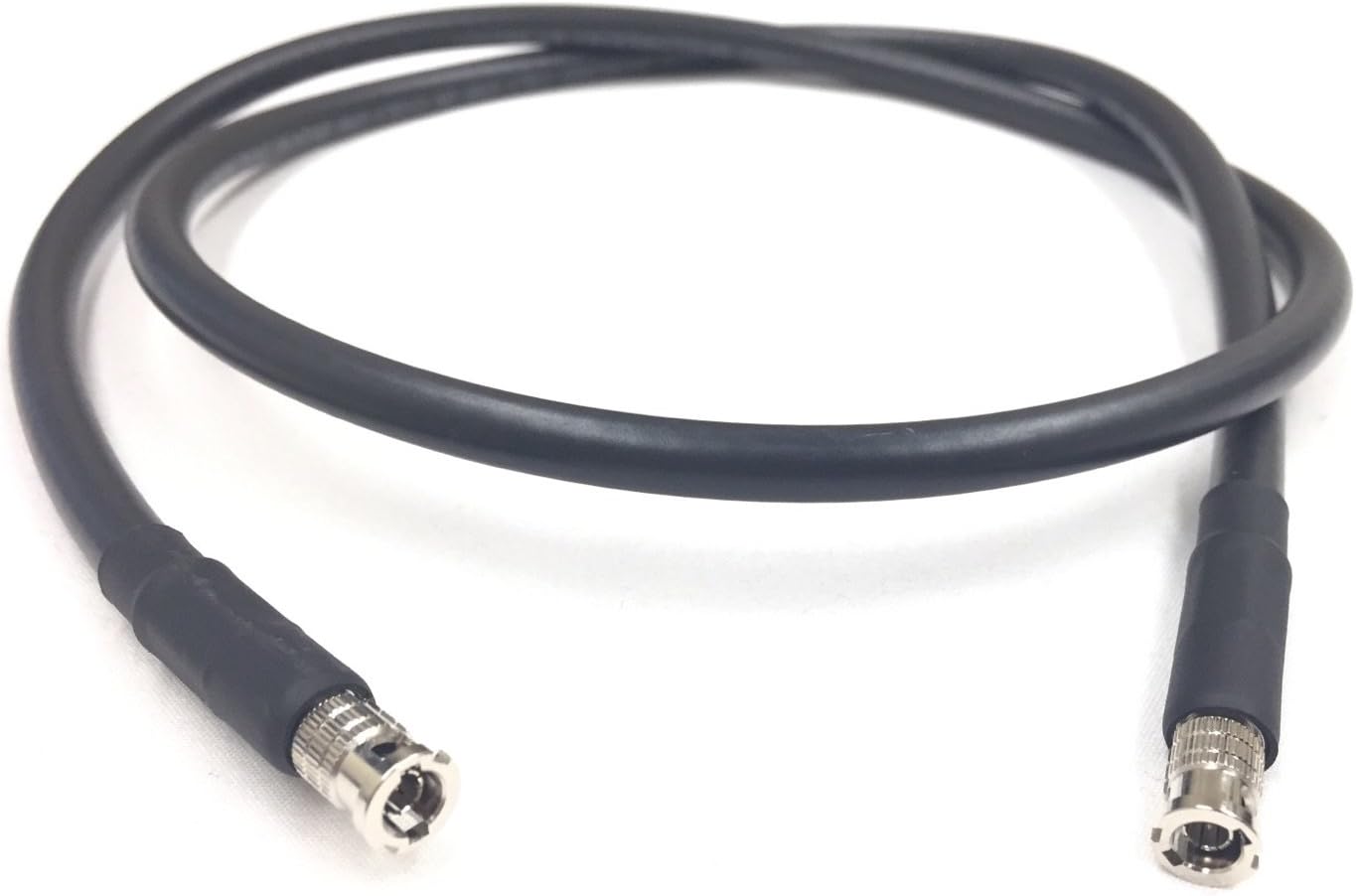

High Density BNC Male to Male HD-SDI Cable with Belden 1694A - 6 Foot

The Belden 1694A RG6 HD-SDI cables are designed for professional broadcast applications in mind. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 18AWG solid copper. Amphenol Connector A: True 75 Ohm High Density BNC Male Amphenol Connector B: True 75 Ohm High Density BNC Male Number of Coax: 1 RG Type: 6/U AWG: 18 Stranding: Solid Conductor Material: BC - Bare Copper Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene Outer Shield Material Trade Name: DuofoilOne of the distinct advantages of the HD-BNC is its lack of variable return loss and mechanical bonding commonly found with mini-BNC and DIN 1.0 / 2.3 connectors. The HD-BNC connector meet or exceeds SMPTE 292M and SMPTE 424M specifications for return loss.

• HD-BNC(High Density BNC) delivers true 75 ohm performance in a footprint 51% smaller than traditional BNC connectors, allowing four times the density. Engineered to enhance electrical and mechanical performance, the HD-BNC connector features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating.
• The HD-BNC connector meets or exceeds SMPTE 292M and SMPTE 424M specifications for return loss. The dielectric had also been extended on the jack to improve the mechanical strength of the center contact without return loss performance degradation. HD-BNC is also known as Micro BNC
• <b>Belden 1694A Low Loss Serial Digital Coaxial Cable</b> is an RG6 coax designed to carry several video signals including analog, 4x3 digital (SD-SDI), high definition (HD-SDI) and even 3gig (1080p/50 or 1080p/60)
• Assembled in Dallas, TX by Custom Cable Connection
• Limited Lifetime Warranty
