DIY Water Cooling Kit with CPU/GPU Block, Cylindrical Reservoir, Pump, LED Fan, 240mm Heat Sink Connectors

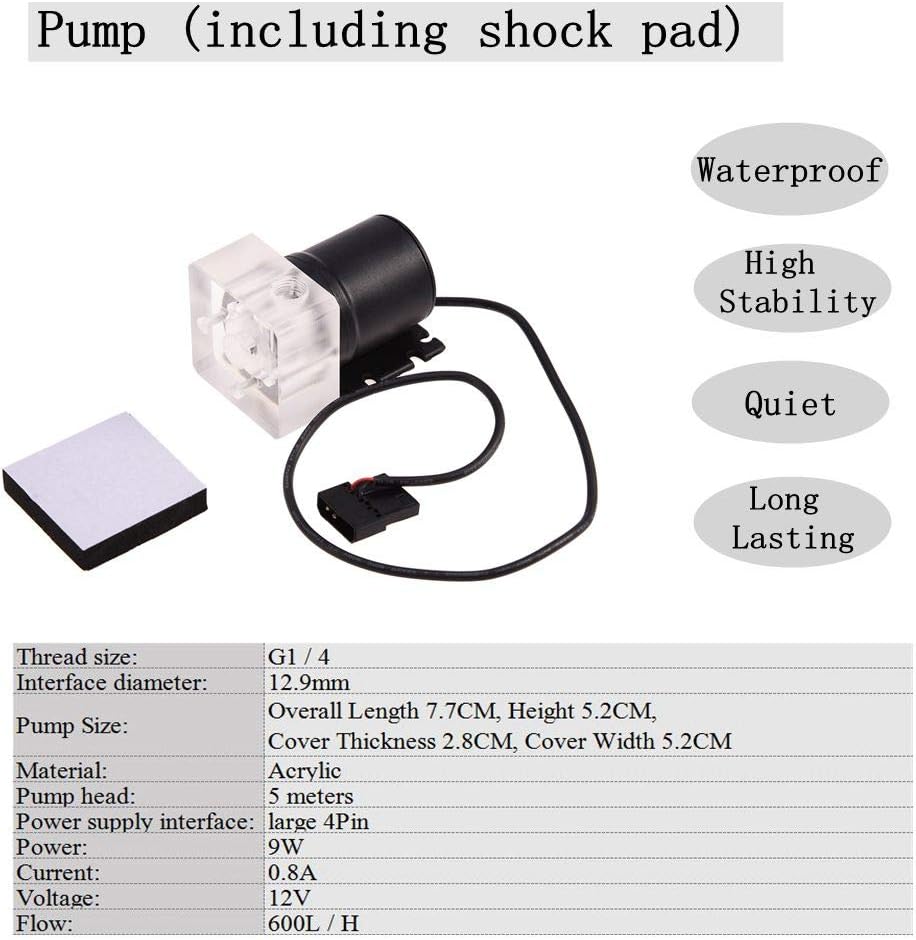

Specifications: 1. 240mm black heat sink (with screw pack): Appearance size: 27.5 * 11.8 * 3.2cm Straight mouth height: 2cm Diameter of straight tube: about 9.5 mm Number of waterways: 18 2. Universal CPU block (with 4 pcs screws): Screw size: G1 / 4 Outside diameter: 12.9MM Bottom size: 5 * 5cm, thickness 3mm Material: Bottom: copper; Cover: transparent plexiglass 3. Universal GPU block Interface: G1 / 4 universal thread, diameter of 12.9mm Material: Bottom: copper; Cover: POM high temperature materials Waterway: 0.8MM parallel waterway Compatibility: Matches a fan with a distance of 53 mm to 61 mm Supported tube: 9.5mm ID / 12.7mm OD PU tube, or 10mmID / 16mmOD solid tube, or 8mmID / 12mmOD silicon tube (ID is the inner diameter, OD is the outer diameter) 4. Cylindrical Water Reservoir (including plastic bracket * 2, metal bracket * 2, screw pack * 1): Water reservoir height: about 160mm Water reservoir diameter: 5cm Water reservoir interface: G1 / 4 universal thread Interface diameter: 12.9mm 5. Transparent hose: Inner diameter: 8mm Outer diameter: 12mm 6. Pump (including shock pad): Features: Waterproof, high stability, quiet, long lasting. Thread size: G1 / 4 Interface diameter: 12.9mm Pump Size: Overall Length 7.7CM, Height 5.2CM, Cover Thickness 2.8CM, Cover Width 5.2CM Material: Acrylic Pump head: 5 meters Power supply interface: large 4Pin Power: 9W Current: 0.8A Voltage: 12V : 600L / H Pacakage List: 1 x 240mm Heat Sink within Screw Pack 2 x LED Fan 1 x Universal CPU Block within 4 Screws 1 x Universal GPU Block within 4 Screws 1 x C(Including 1 * screw pack, 2 * plastic bracket, 2 * metal bracket) 1 x Transparent Hose 1 x with Shock Pad 1 x A Set of Water Pipe Connectors & Hose Clamps & Plugs

• CPU / GPU Block: The CPU/GPU block is constructed with a copper base to provide exceptional heat transfer and cooling performance. Universal CPU block for / (For 775,1150,1155,1156,1366,) (For AM2, AM3, AM3 +) Do not support for AMD4CPU CPU block, bracket supports for mainstream hole installation.
• Cylindrical Water Reservoir: The cylindrical water reservoir is manufactured from high quality transparent acrylic so that the circulation system is visible.
• : Waterproof, high stability, quiet, long lasting. 240mm Heat Sink: Provide the excellent heat dissipation, as you need for highly overclocked desktop processors.
• Transparent Hose: Upgraded flexible anti-explosion, hoses enable a space-saving installation and exceptional durability.
• LED Fan: The extreme performance fans offer a high air static pressure with lower noise. Appearance size: 12 * 12cmPower supply interface: large 4Pin + small 3Pin
