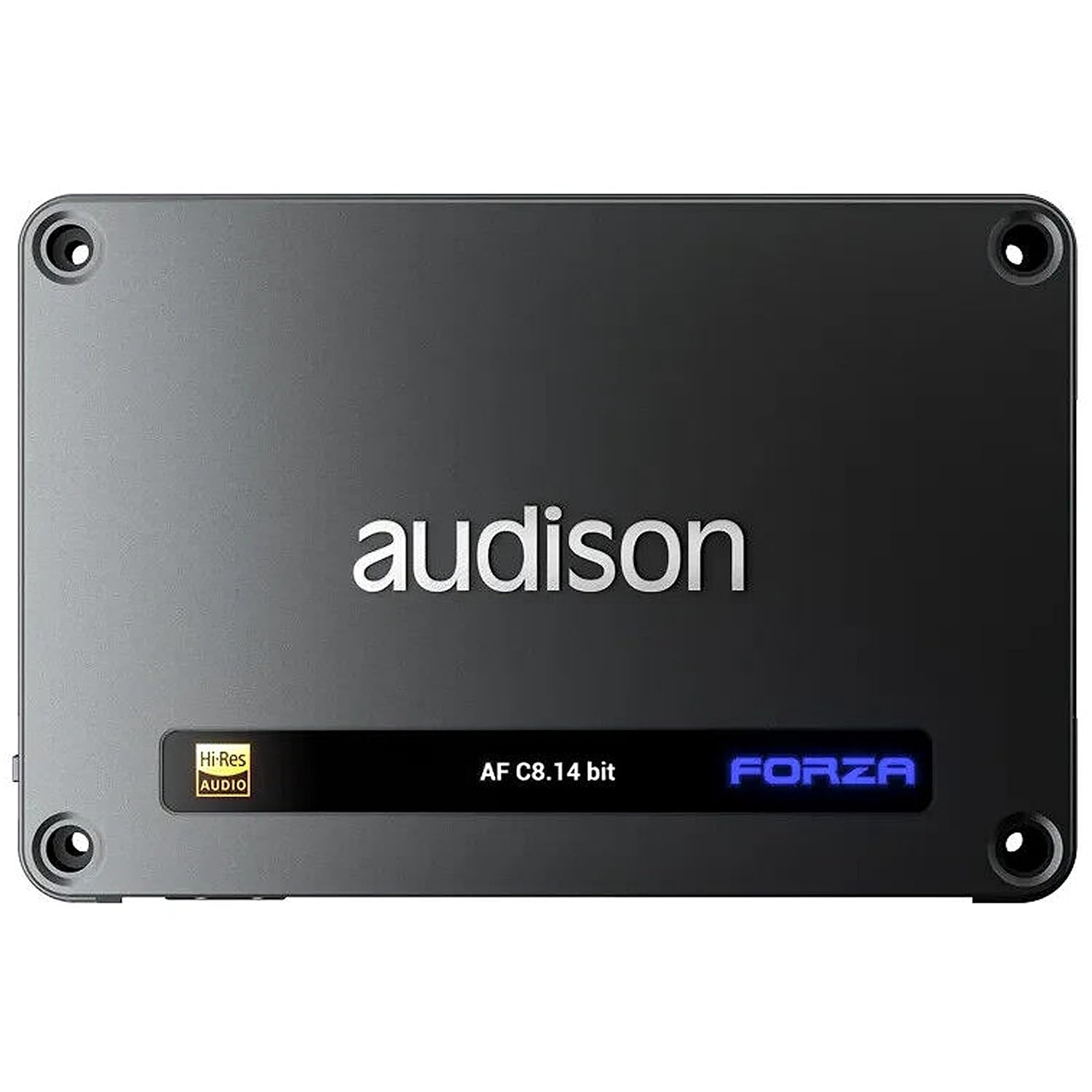

Audison AFC8.14BIT 8-Channel X 100W RMS Power Amplifier with Built-in DSP

AFC8.14BIT | Audison 8-Channel X 100W RMS Power Amplifier with Built-in DSPAmplifier Tech Data Channels 8 Class D-Class Power supply voltage / fuse 11 ÷ 15 VDC / 1 x 35A Operating power supply voltage 6.5 ÷ 17.5 VDC Idling current 1.3 A Standby Current Draw 1.5 mA Consumption @ 14.4 VDC, 2Ω, Max Musical Power 34 A Remote IN 4 ÷15 VDC (1 mA) Remote OUT 6.5 ÷15 VDC (150 mA) ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers 1.5 VDC Efficiency Rated Power 81%Amplifier Stage Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0.05% Bandwidth @ -1.5 dB 10 Hz ÷ 42 kHz Damping factor @ 1 kHz, 4Ω, 2 VRMS 85 S/N ratio (A weighted @ 1 V Input) Master Input 98.5 dBA S/N ratio (A weighted @ 1 V Input) Optical Input 105 Total Power RMS 800 W Minimum load impedance 2Ω Output Continuous Power (RMS) @14.4 VDC, 1% THD 8 Ch @ 4Ω: 65 W x 88 Ch @ 2Ω: 100 W x 84Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 200 W x 4 Adjustable Crossover YesCEA Specifications Output power @ 4Ω, 1% THD+N, 14.4 V 55 W x 8 SN ratio (ref. 1W output) 80 dBInputs / Outputs Pre-In Inputs 0.6 ÷ 6 VRMS (15 kΩ Imp.) Digital Input Yes Pre Outputs 2 Hi Level Inputs 8 Low Level Inputs 8 Speaker-In Inputs 2.2 ÷ 22 VRMS (5 Ω Imp.) Digital IN 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card Input Optical IN 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O cardDigital Signal Processor Audio DSP Converter Analog Devices ADAU1467 automotive qualified audio processor processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bi

• AF C8.14 bit boasts eight high-fidelity amplified channels 65W x 8 @4Ω*, 100W x 8 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package!
• This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 4 @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
