14"(360mm 240-33 ohm Electric Fuel Tank Pump Level Sensor Sending Unit Compatible with Marine Boat Vehicle Truck RV Fuel Tank Fuel Water Level Sensor Gauge

"The oil delivery device is suitable for automobile, ship, speedboat, engine, generator set, construction machinery, agricultural machinery, modified vehicle and other fields.Output Signal: American Standard 240-33 ohms (240 ohms at empty , 33 ohms at full).Operational Temperature: -40°F ~ +85°F (-40°C ~ +85°C)."

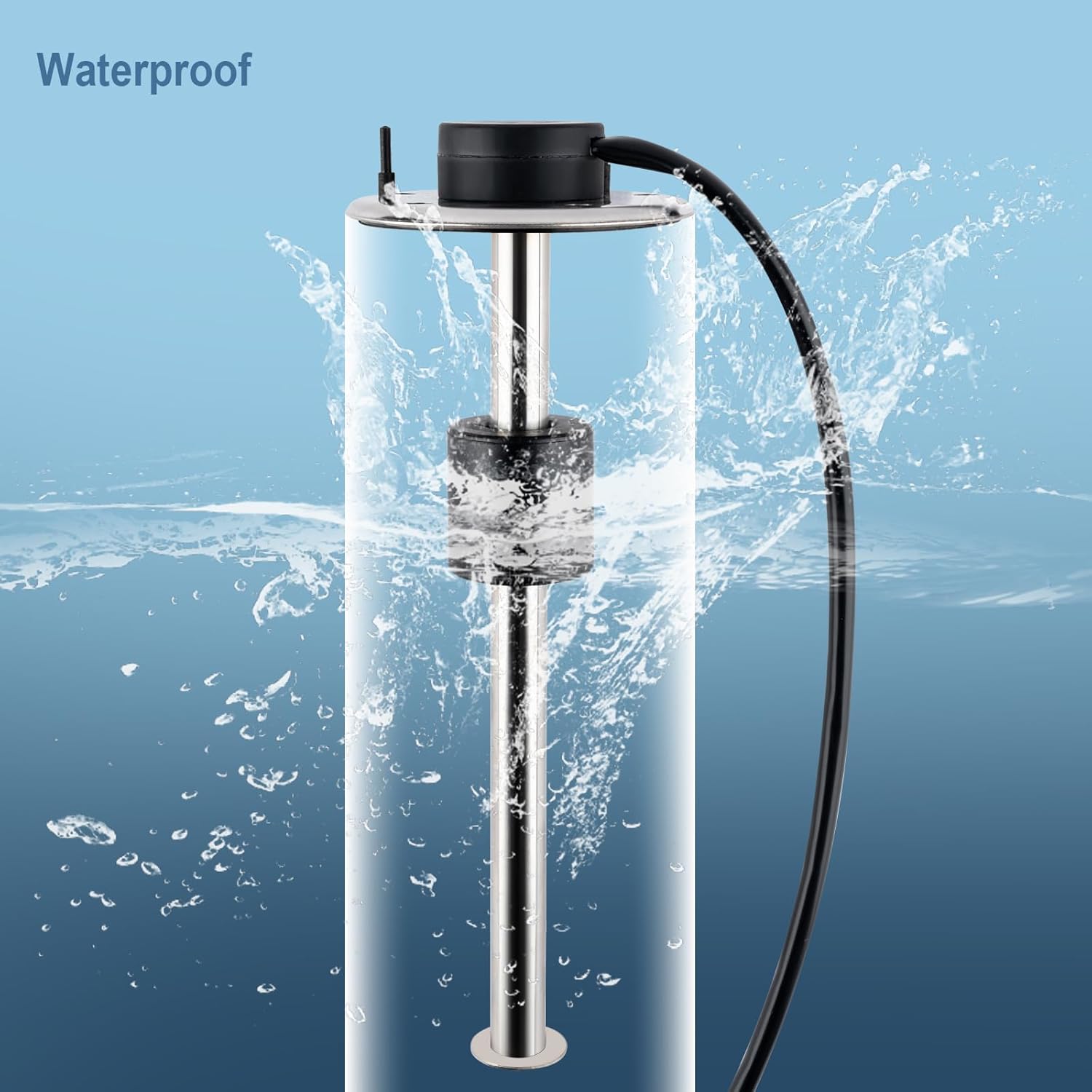

• The 14"(360mm）reed switch fuel transmitter unit is designed based on magnetic technology and is made of a series of high-quality reed switches and fixed resistors. It doesn't need to float on the arm. A swinging arm unit that greatly reduces shaking and fluctuations. No moving parts to be damaged, no moving parts to be damaged. It moves freely and accurately indicates the fuel level in the tank.
• The oil delivery device is suitable for automobile, ship, speedboat, engine, generator set, construction machinery, agricultural machinery, modified vehicle and other fields.
• Sensors are a better option than traditional lever-type sensors. The tank is not affected by the constant motion caused by waves and rocking.

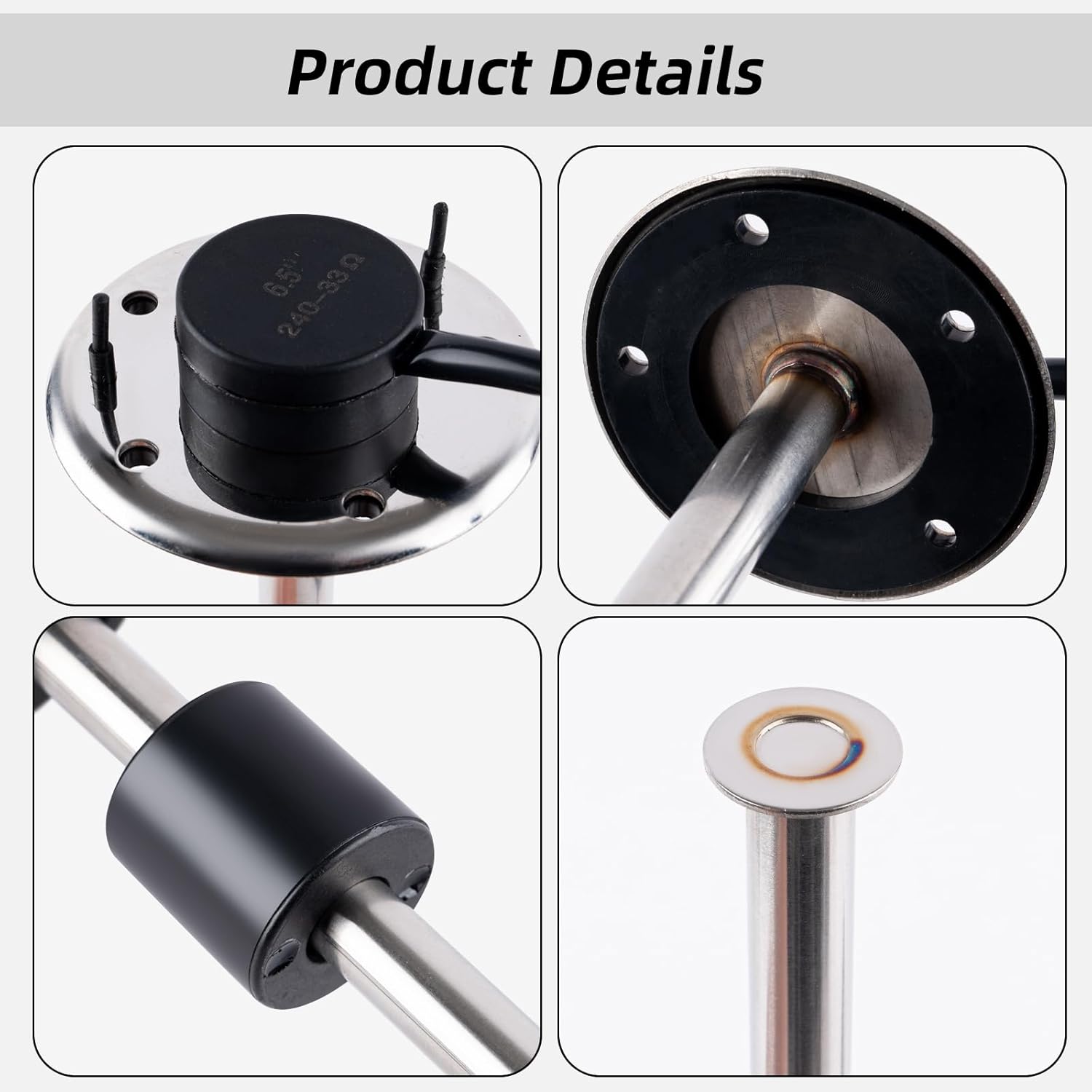

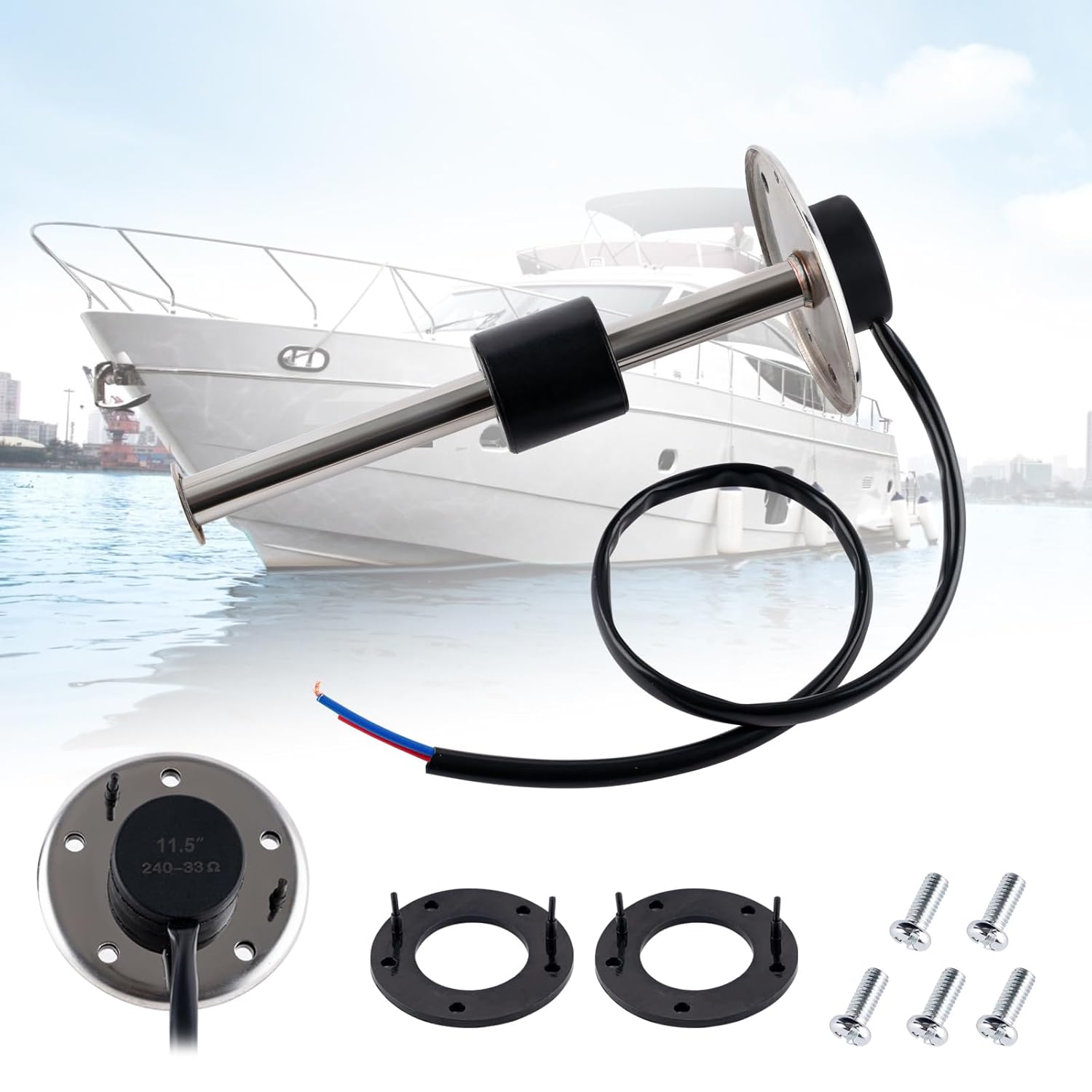

• Installation mode: 5-hole installation mode. The sturdy flange completely seals the tank. Fuel transmitter with 1pc butene rubber washer (1pc), 5pcs SUS 316 M5 mounting screws; Wiring instructions are straightforward and easy to follow.
• Marine fuel transmitter output signal: 240-33 ohms. (240 ohms in air time, 33 ohms in full time). Support 240-33 ohm oil and water level gauges; Please select a length range and signal you need to place an order
